L-Series

The Aquawing L-Series

In a time when the demand is high for more economical and eco-friendly laundry equipment, Aquawing has answered the call with the development of its L-Series system.

The L-Series is a state of the art system that offers a sleek compact design, eliminating the need for any special frame or mounting system.

Aquawing's L-Series runs on standard 110v power, eliminating the need for any special outlets or power connections.

With Aquawing's patented Interfusor the L-Series Ozone system gives you the same spectacular savings of the AF-Series tower system. This system has proven to be a valuable addition to the Aquawing family with installs in many major prisons, health care and hospitality facilities through out the United States.

Benefits

• Easy to operate
• Light weight design
• Compact
• Can be mounted directly to the wall
• Plugs into a standard 110v electrical outlet
• Reduced power consumption
• Optional Variable control available
• Made in USA

Specs

• Capacity: Up to 100lbs.
• Power: 110v – 15amp

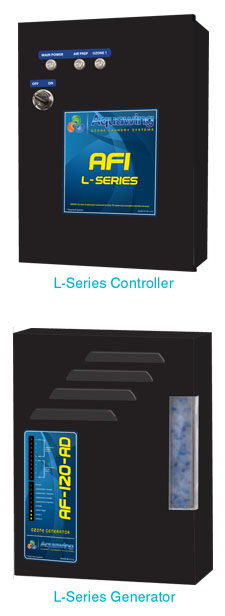

Control Box

• Internal air compressor
• Air flow meter
• Ozone room monitor (standard)
• Variable ozone output control (optional)
• Main power interface to generator
• Signal input from washer

Ozone Generator

• Corona discharge
• Internal heat regenerative air dryer
• Adjustable output to meet all demands
• Universal power supply
• Voltages from 90-260 volts
• 47-63 Hz.
• LED shows: main power, high temp, variable ozone output (optional) and air dryer status
• Solid state electronic components
• Over current regulation
• Automatic sensing remote 4-20mA ozone output control
• Durable powder coated exterior

Read brochure

Other Product Brochures

• AF Series brochure
• VO3 brochure
